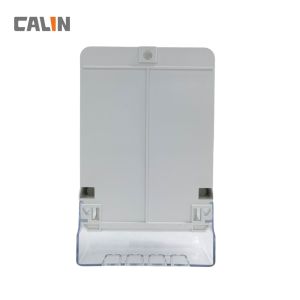

Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in residential and industrial applications. Our prepaid meters feature robust anti-tamper protection.
| Parameter | Value |
|---|---|
| Nominal voltage Un | 220/230/240 V |
| Limited voltage | 50%~130%Un |
| Nominal frequency fn | 50-60Hz |
| Basic current(Ib) | 5A |
| Maximum current(Imax) | 60/80/100A |
| Starting current(Ist) | 0.4%Ib |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | -25℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
